lab3.py File Reference

A program that plays simone says with the user. More...

Classes
class	lab3.simonSays
	A class that plays simon says with the user using an LED and a button. More...

Variables
	lab3.pinA5 = pyb.Pin (pyb.Pin.cpu.A5)
	lab3.tim2 = pyb.Timer(2, freq = 20000)
	lab3.t2ch1 = tim2.channel(1, pyb.Timer.PWM, pin=pinA5)
	lab3.game = simonSays(t2ch1)

Detailed Description

A program that plays simone says with the user.

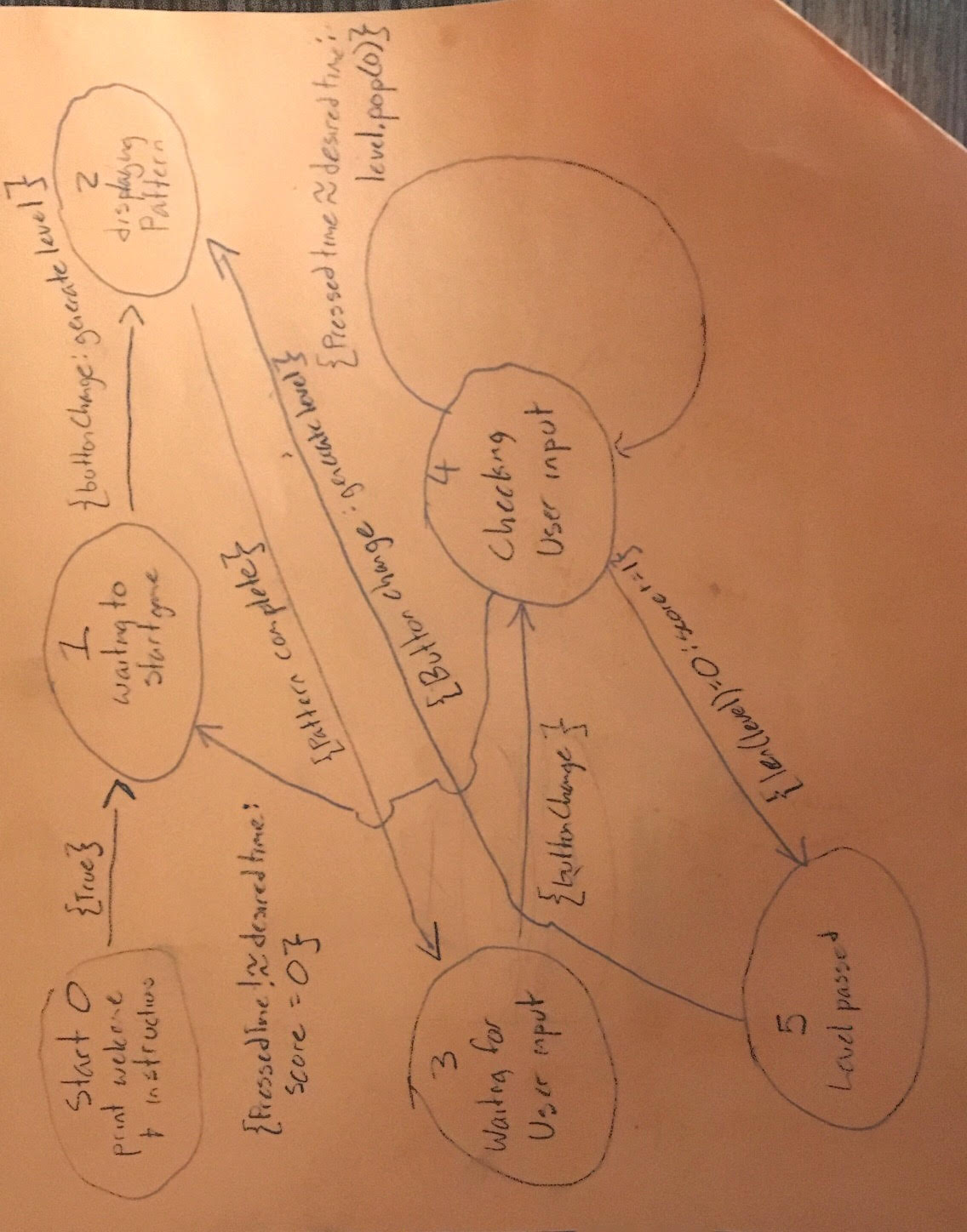

Link to Source Code: https://bitbucket.org/ebriefer/me305_lab/src/master/Lab%203/lab3.py Demonstration https://youtu.be/LWRrAM0yLX0 This program randomly generates a sting of LED flashes of varying length. Then, it compares the durration of button presses by the user to the pattern, and if they are sufficiently close, congratulates the user and generates another random sequence for them to replicate. The pattern length and difficulty gradually increases as the user progresses. State machine diagram:

Author

Eliot Briefer

Date

2/18/2020
